As I mentioned before, I’ll write about pig launcher/pig trap in one article very soon. I really meant it when I say “very soon”, you see..

In offshore pipeline, pigs generally need specially designed launching and receiving vessels (launcher and receiver) to introduce them into the pipeline. Pig launcher and receiver are used to send and receive pigs. The launcher and receiver are installed at the upstream and downstream of the pipeline section being pigged, respectively. The distance between the launcher and receiver depends on the service, location of pump (liquid product) or compressor (gas product) stations, operating procedures, and the materials used in the pig. In crude oil pipeline systems, the distance between launcher and receiver can be as long as 500 miles for spheres and 300 miles for pigs. The amount of sand, wax, and other materials carried along the pig can affect the proper distance. In gas transmission service, the distance between the launcher and receiver can be as long as 200 miles for spheres and 100 miles for pigs, depending on the amount of lubrication used.

The launcher and receiver consist of a quick opening closure for access, an oversized barrel, a reducer, and a neck pipe for connection to the pipeline. Pigs can be located using fixed signalers along the pipe or electronic tracking systems mounted inside the pig.

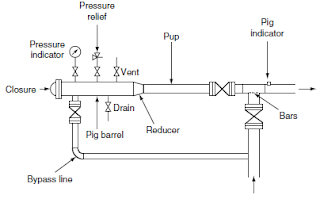

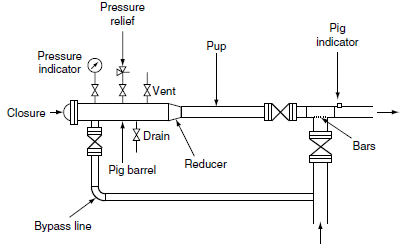

Configuration of a pig launcher for liquid services

Configuration of a pig receiver for liquid services

Configuration of a pig launcher for gas services

Configuration of a pig receiver for gas services

To launch pigs, make sure that the isolation valve and the kicker valves are closed. In liquid systems, open the drain valve and allow air to displace the liquid by opening the vent valve. In natural gas systems, open the vent and vent the launcher to atmospheric pressure. When the pig launcher is completely drained (no pressure left), with the vent and drain valves still open, open the trap (closure) door. Install the pig with the nose firmly in contact with the reducer between the barrel and the nominal bore section of the launcher. Clean the closure seal and other sealing surfaces, lubricate if necessary, and close and secure the closure door. Close the drain valve. Slowly fill the trap by gradually opening the kicker valve and venting through the vent valve. When the filling is completed, close the vent valve to allow pressure to equalize across the isolation valve. Open the isolation valve. The pig is ready for launching. Partially close the main line valve. This will increase the flow through the kicker valve and behind the pig. Continue to close the main line valve until the pig leaves the trap into the main line as indicated by the pig signaler. After the pig leaves the trap and enters the main line, fully open the main line valve. Close the isolation valve and the kicker valve. The pig launching is complete.

To receive pigs, make sure the receiver is pressurized. Fully open the bypass valve. Fully open the isolation valve and partially close the main line valve. Monitor the pig signaler for pig arrival. Close the isolation valve and bypass valve. Open the drain valve and the vent valve. Check the pressure gauge on the receiver to assure the trap is completely depressurized. Open the trap closure and remove the pig from the receiver. Clean the closure seal and other sealing surfaces, lubricate if necessary, and close and secure the trap (closure) door. Return the receiver to the original condition.

To understand how pig launcher/receiver work, you can also watch the procedure in this video below:

--

Source:

Lee, Jaeyoung. Introduction to Offshore Pipelines and Risers. 2007.

Guo, Boyun, Shanhong Song, Jacob Chacko, Ali Ghalambor. USA. 2005.

https://www.youtube.com/watch?v=KMoCbqOT7yU
